Spool drawing

Spool drafting

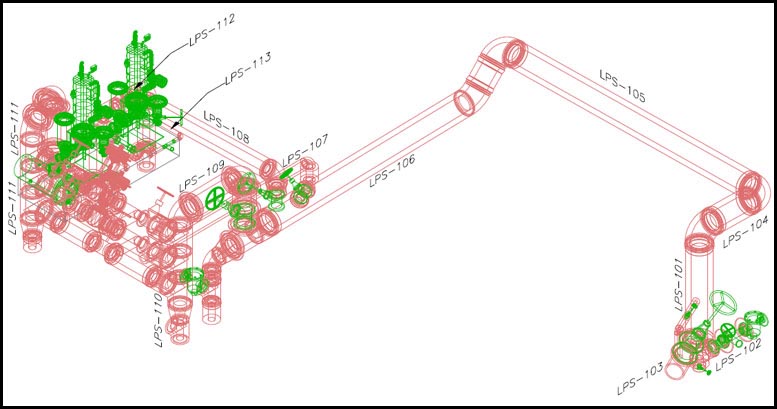

A spool is an assembly of pipe and associated components that can be pre-fabricated in the workshop for future installation and then shipped to site for assembling. A pipe spool drawing acts as a guide to plumbers to understand what they are encountering. A pipe is split into different sections, called spools. These spools connect at various junctions throughout any given structure. A pipe spool drawing is optimized to provide all the information needed by the fabricator to accurately manufacture or assemble the spool. Spool drawing furnishes the complete information of all parts welded together in the shop on a single drawing.

Our MEP services include 3D modeling, Shop and fabrication drawings, patent drawings, Isometric drawings, as built drawings, mark-up detailing, parametric drawing, assembly drawings, mechanical shop drawing, mechanical cad conversion services, fabrication drawing, technical drawing etc. We ensure that the drawings are delivered as per the industry standards and appropriate formats & layouts as required by the client. We have a skilled and specialized mechanical drafting team headed by a senior project manager and experienced draftsmen to provide innovative and highly professional drafting services to all kinds of industrial, commercial and residential industries. We work in close contact with the client’s engineering team to ensure the client receive professional drawings with 100% accuracy.
